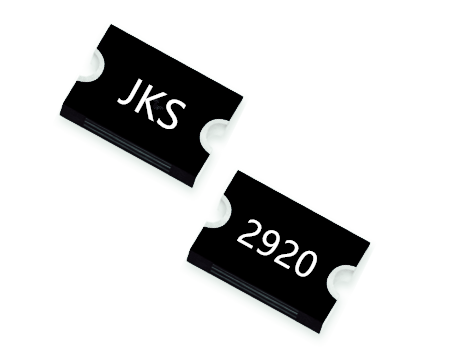

SMD2920贴片保险丝，贴片型、无铅、卷盘式包装自恢复保险丝，应用于高密度线路板，工作电流：0 3-3 0A 工作电压：6-60V，工作温度：-40℃-85℃。
详细规格书下载：
规格列表
| Part Number | Vmax (Vdc) | Imax (A) | Ihold (A) | Itrip (A) | Pd (W) | Current (A) | Time (S) | Rmin (Ω) | R1max (Ω) |
| HYSMD2920-030 | 60 | 100 | 0.30 | 0.6 | 1.5 | 1.5 | 3.0 | 0.600 | 4.800 |
| HYSMD2920-050 | 60 | 100 | 0.50 | 1.0 | 1.5 | 2.5 | 4.0 | 0.180 | 1.400 |
| HYSMD2920-075 | 33 | 100 | 0.75 | 1.5 | 1.5 | 8.0 | 0.3 | 0.100 | 1.000 |
| HYSMD2920-110 | 33 | 100 | 1.10 | 2.2 | 1.5 | 8.0 | 0.5 | 0.065 | 0.410 |
| HYSMD2920-125 | 33 | 100 | 1.25 | 2.5 | 1.5 | 8.0 | 2.0 | 0.050 | 0.250 |
| HYSMD2920-150 | 33 | 100 | 1.50 | 3.0 | 1.5 | 8.0 | 2.0 | 0.035 | 0.230 |
| HYSMD2920-185 | 33 | 100 | 1.85 | 3.7 | 1.5 | 8.0 | 2.5 | 0.030 | 0.150 |
| HYSMD2920-200 | 16 | 100 | 2.00 | 4.0 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 |
| HYSMD2920-250 | 16 | 100 | 2.50 | 5.0 | 1.5 | 8.0 | 16.0 | 0.020 | 0.085 |
| HYSMD2920-260 | 6 | 100 | 2.60 | 5.2 | 1.5 | 8.0 | 10.0 | 0.014 | 0.075 |
| HYSMD2920-300/6V | 6 | 40 | 3.00 | 6.0 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 |
| HYSMD2920-300 | 16 | 100 | 3.00 | 6.0 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 |
