| Part Number | Marking | Vmax (Vdc) | Imax (A) | Ihold (A) | Itrip (A) | Pd (W) | Current (A) | Time (S) | Rmin (Ω) | R1max (Ω) |
| JSMD1210-005 | X0 | 30.0 | 100 | 0.05 | 0.15 | 0.6 | 0.25 | 1.50 | 2.800 | 50.000 |
| JSMD1210-010 | X1 | 30.0 | 100 | 0.10 | 0.30 | 0.6 | 0.50 | 0.60 | 0.800 | 15.000 |
| JSMD1210-020 | X2 | 30.0 | 100 | 0.20 | 0.40 | 0.6 | 8.00 | 0.02 | 0.400 | 5.000 |
| JSMD1210-035 | X3 | 6.0 | 100 | 0.35 | 0.75 | 0.6 | 8.00 | 0.20 | 0.200 | 1.300 |
| JSMD1210-050 | X5 | 13.2 | 100 | 0.50 | 1.00 | 0.6 | 8.00 | 0.10 | 0.180 | 0.900 |
| JSMD1210-075 | X7 | 6.0 | 100 | 0.75 | 1.50 | 0.6 | 8.00 | 0.10 | 0.070 | 0.400 |
| JSMD1210-10 | X11 | 6.0 | 100 | 1.10 | 2.20 | 0.6 | 8.00 | 0.30 | 0.050 | 0.210 |
| JSMD1210-150 | X15 | 6.0 | 100 | 1.50 | 3.00 | 0.6 | 8.00 | 0.50 | 0.030 | 0.110 |
| JSMD1210-175 | X17 | 6.0 | 100 | 1.75 | 3.50 | 0.8 | 8.00 | 0.60 | 0.020 | 0.080 |
| JSMD1210-200 | X20 | 6.0 | 100 | 2.00 | 4.00 | 0.8 | 8.00 | 1.00 | 0.015 | 0.070 |

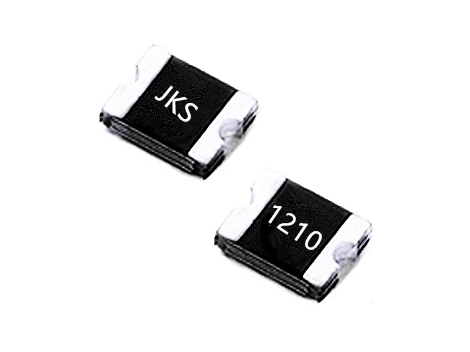

SMD1210贴片保险丝，贴片型、无铅、卷盘式包装自恢复保险丝，应用于高密度线路板，工作电流：0 1-2A，工作电压：6-60V，工作温度：-40℃-85℃。
详细规格书下载：
规格列表
